2.4 END OF THREADED STUDS

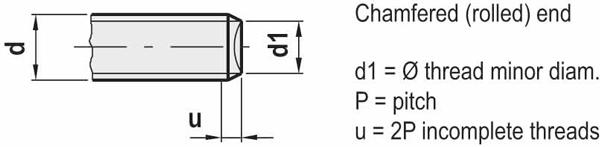

All threaded studs of the ELESA+GANTER elements have a chamfered flat end in compliance with UNI 947 : ISO 4753.

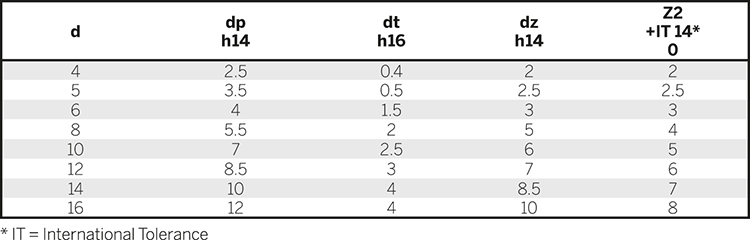

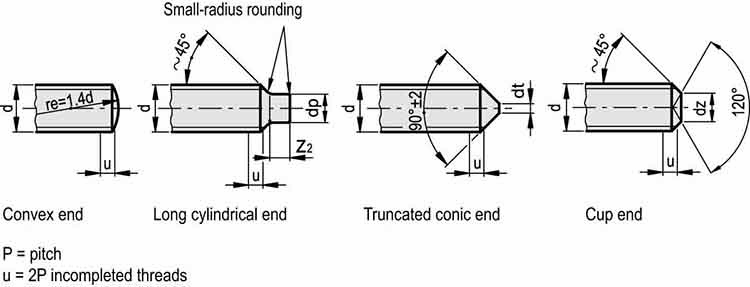

On request and for sufficient quantity, studs with different kinds of ends may be provided. These ends may be of the types shown hereunder, as indicated in the UNI 947 : ISO 4753 table for 'Fixing elements: ends of elements with ISO metric outside threading'.
-
