10.18 Assembly sets GN 965 and GN 968

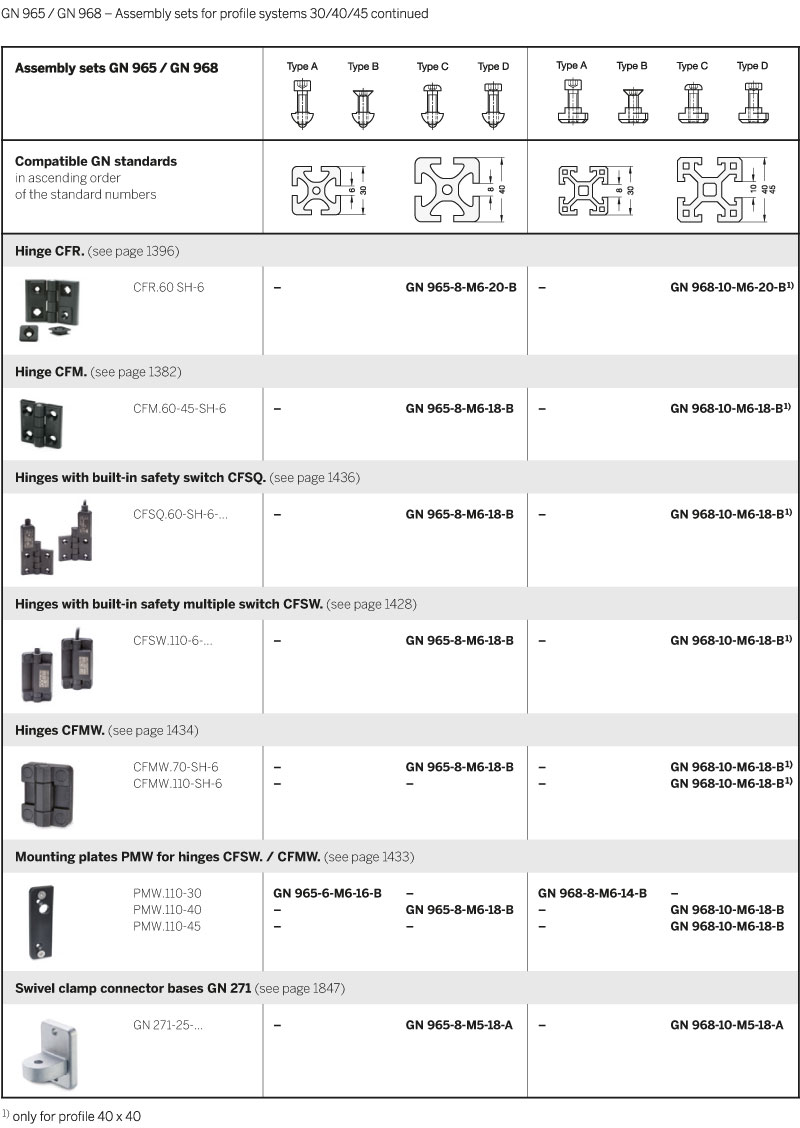

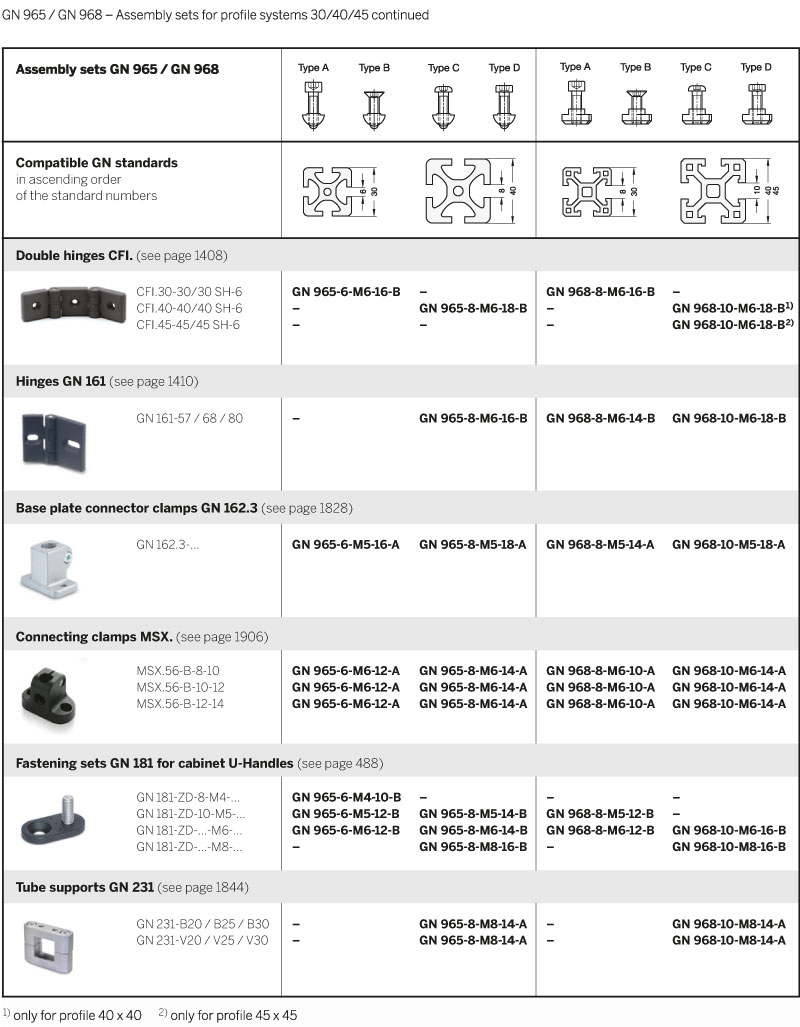

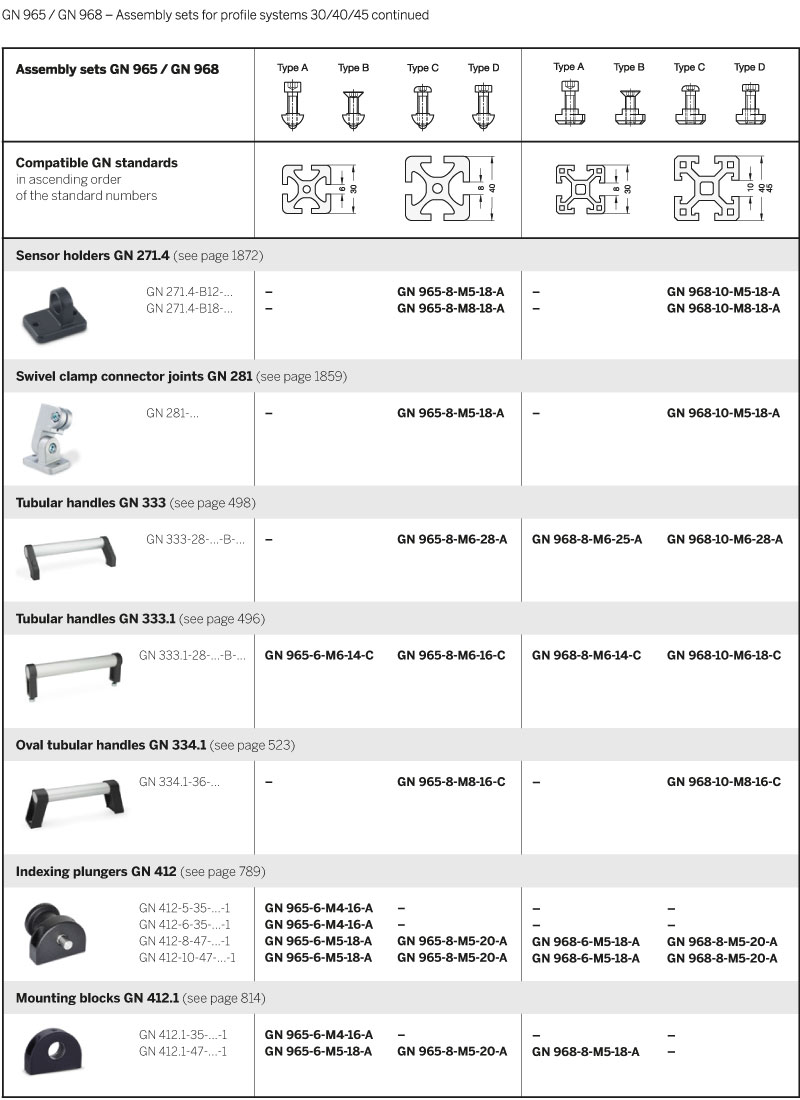

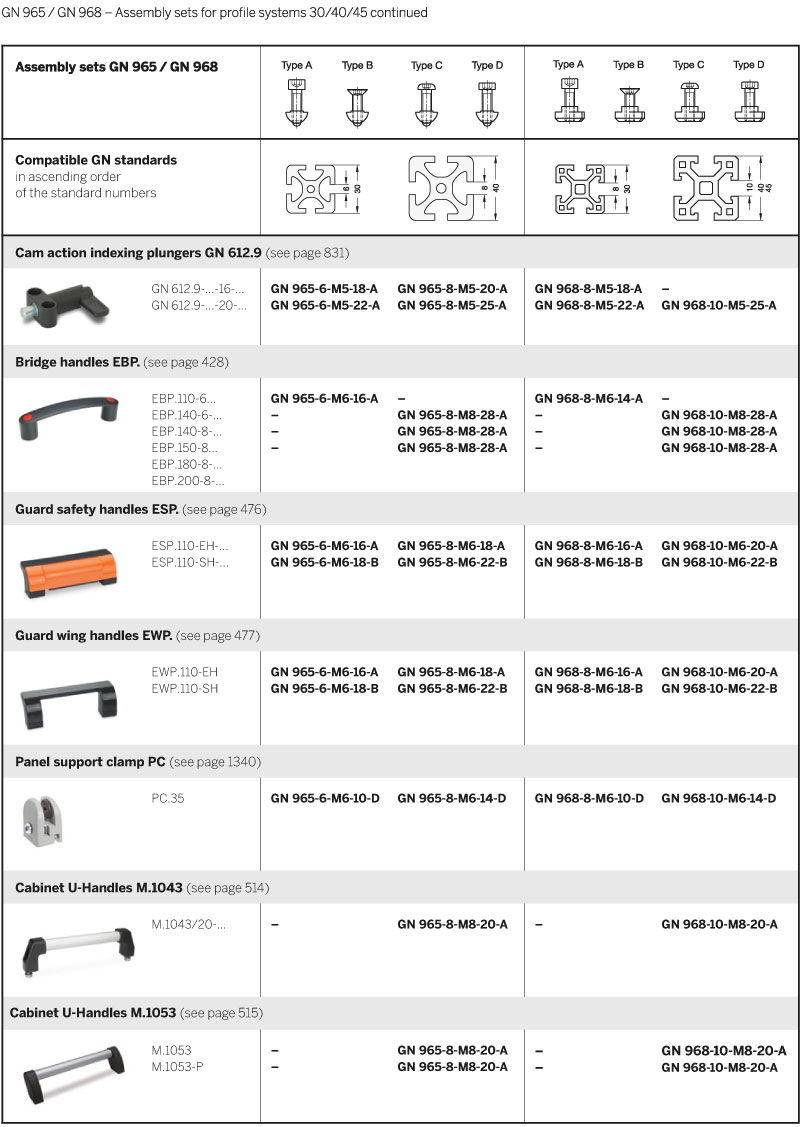

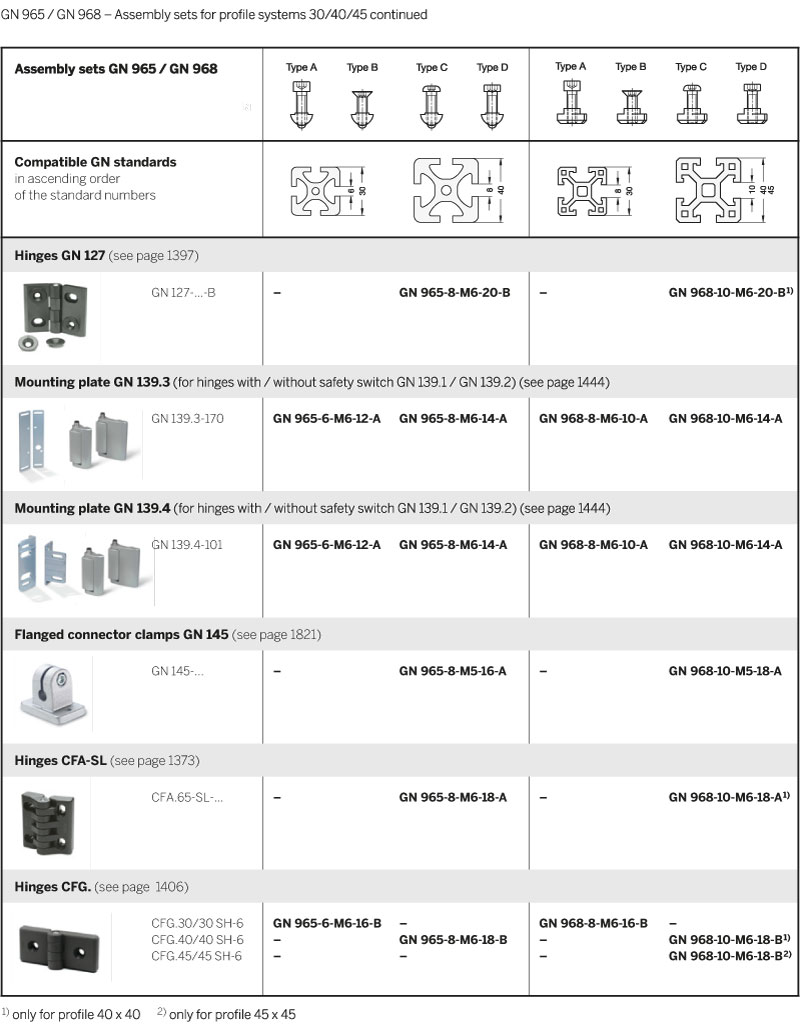

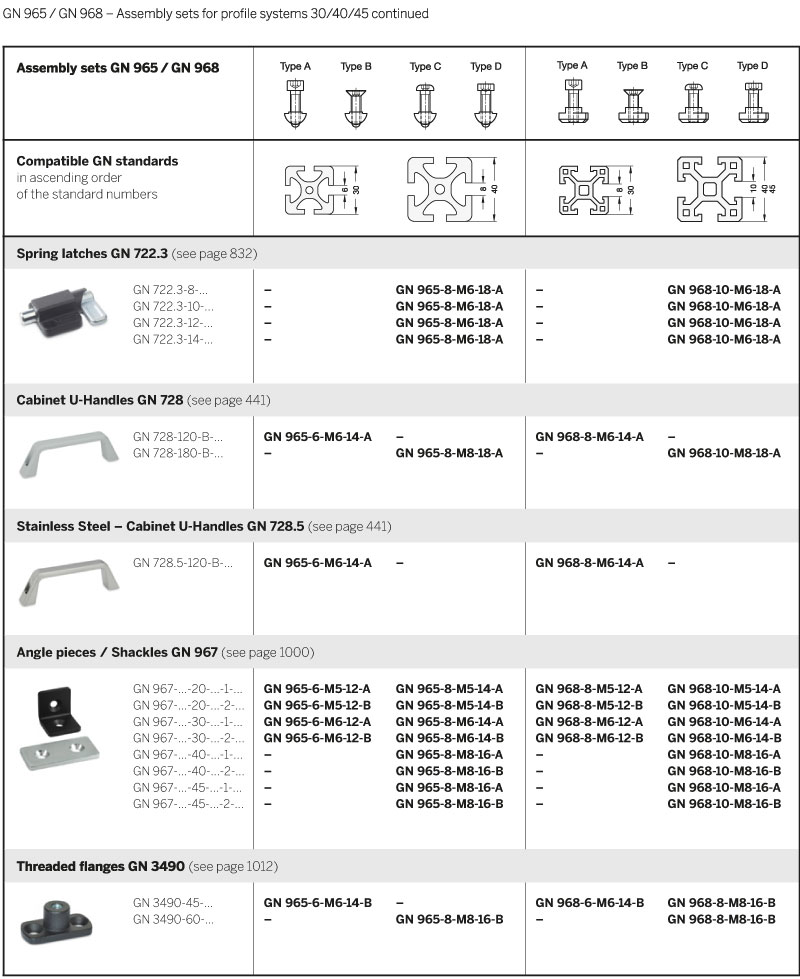

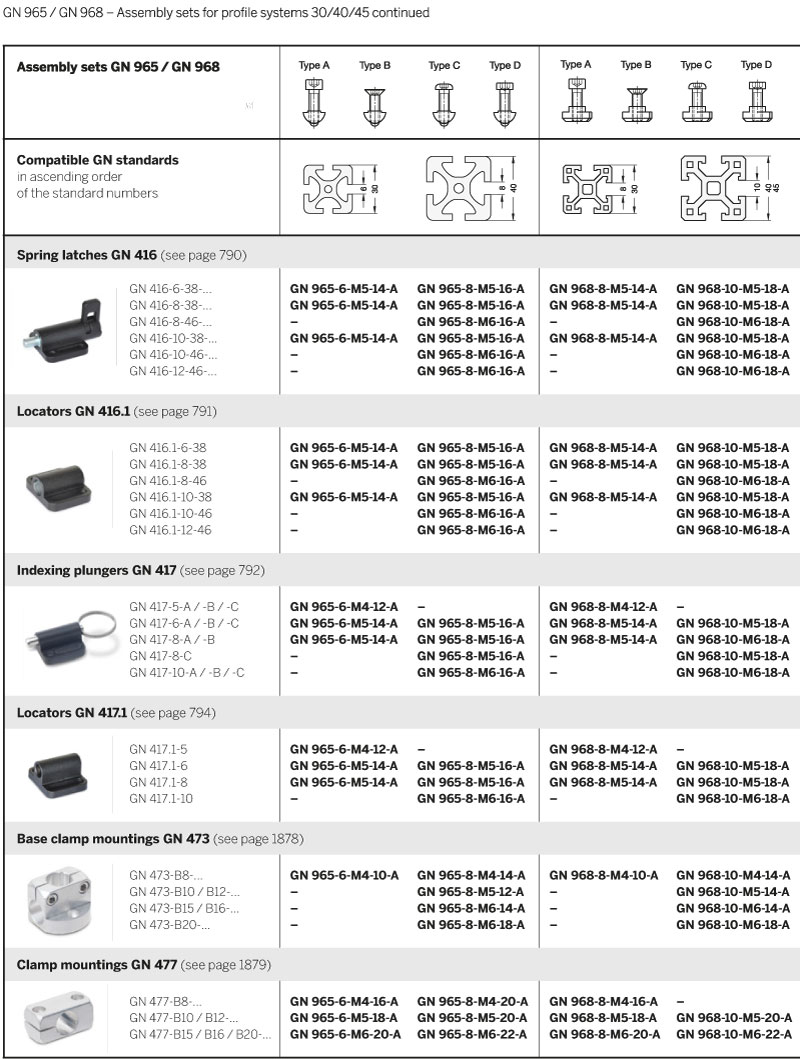

Selection of the appropriate assembly sets
ELESA+GANTER offers many products which are compatible with the most common T-Slot Profile Systems. Show the tables to select the assembly set you need.

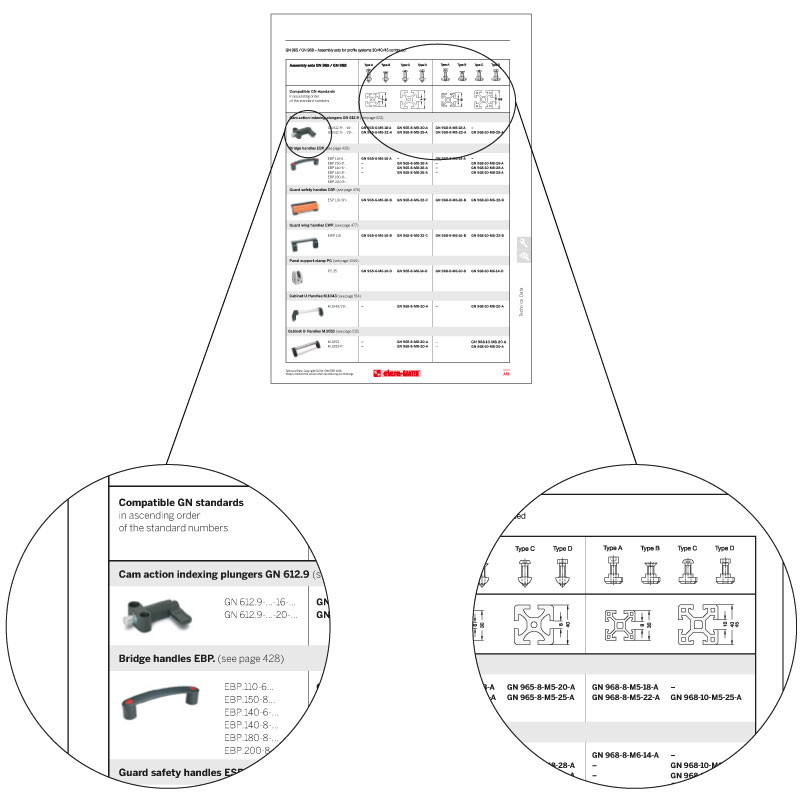

1. Your ELESA+GANTER product
The left hand column of the table shows the compatible ELESA+GANTER products, sorted in ascending standard number. At this point, first select the standard part to be mounted.

2. Your assembly set
The columns on the right hand side show assembly sets matching the selected products. Depending on the profile shape, select the standard GN 965 or GN 968. The list underneath the profile cross-sections show the order numbers for the matching sets.
